2mm 2-Pos. Terminations

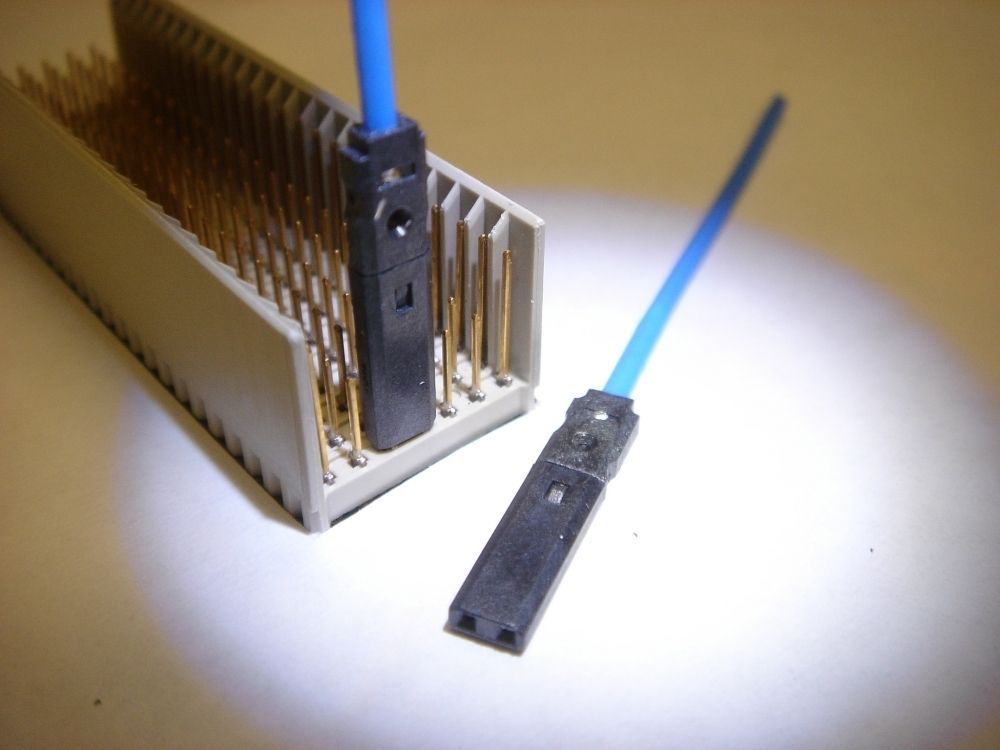

MERITEC 2mm 2 Position Terminations

Product Details

  • FEATURES AND BENEFITS

    • Mates with .020″ by .020″ square headers and Hard Metric headers
    • 350Mhz MAX Bandwidth when using coax
    • Use with Coax or Hook Up wire for signals or power delivery
    • Welded terminations
    • Dual Shoulders provided for mechanical support hardware
    • Beveled edges indicate signal/shielded orientation
  • SPECIFICATIONS

    Electrical

    • Contact Resistance: 2.7 milliohms average
    • Current Rating: 1A per contact
    • Insulation Resistance: >10 Gohms

    Mechanical

    • Contact Material – copper alloy
    • Contact Finish – High Performance Au/Ni plating
    • Insertion Force: 68 grams/contact average
    • Withdrawal Force: 48 grams/contact average
    • Dielectric Material High temp resin
    • Pin Insertion Depth: .425″ MAX; .250″ MIN. Pins .125″ to .250″ can be used as long as the connector is held in place by additional support hardware

    Environmental

    • Material: UL rated 94 V-0
    • Temperature Rating – -20°C to +100°C
