LVDS Compatible Display Cables

Meritec LVDS compatible display cables are ideally suited for board-to-FPD interconnects where differential signals are utilized. Available in 14, 20 or 30 positions with Hirose DF-19, JAE FI-X or equivalent connectors using 1.0mm pitch laminated cable. These assemblies offer reliable terminations and a low profile for flexibility and reliability. Optional folding, flexing and shielding features makes it easy to design a cable that meets your requirements. For build to order specifications, please download the LVDS Compatible Display Cables datasheet for a complete build to order form.

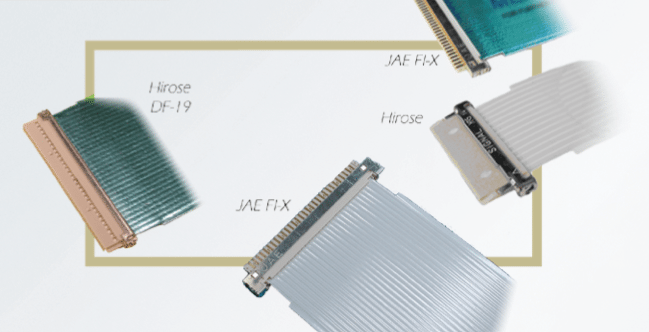

Meritec LVDS compatible display cables

Product Details

  • FEATURES & BENEFITS

    • Hirose DF-19 or equivilant connector
    • 1.0mm laminated cable
    • 14, 20 or 30 position female
    • JAE FI-X or equivilant connector
    • Reliable termination
    • Low profile
    • Suitable in notebook hinge areas
    • Consult factory for shielding, grounding & drain wire requirements
    • UL Recognized components
    • RoHS Compliant product available

    Options Include:

    • Ferrites
    • Shielding
    • Length & fold options
    • ZIF (1.0mm) end
    • Transition boards for various pitch
    • Solder prep for direct attachment to the PCB

  • SPECIFICATIONS

    Electrical

    • Hirose DF-19 Connector
    • JAE FI-X Connector
    • 0.9 AMPS

    Environmental

    • Material: U.L. flame rating 94V-1
    • Temperature Rating: -40°C to +105°C

    Contacts

    • Hirose DF-19 Connector
    • JAE FI-X Connector

    Cable

    • Insulator: Polyester
    • Conductor: Flat solid 33 Awg equivalent
    • Plating: Tin Bismuth
    • Minimum Bend Radius: 0.020″
    • Length Tolerances: Over 12″ ± 0.25″ Under 12″ ± 0.10″
    • Length measured from end to end in inches, including connectors

Supporting Documents

MERITEC-Flat Flex Catalog

MERITEC-LVDS Datasheet
