Right Angle PCIe Connector
This Right Angle Through-Hole PCIe connector solves space problem in applications where a card edge connector is needed and where low clearance above PCB prohibits use of vertical configurations.
Meritec’s PCIe Connector
Product Details
FEATURES & BENEFITS
- Parallel Daughter card mating for low profile applications
- Plastic cover protects connectors from dust and debris, and supports connector for hybrid soldering applications requiring convection/IR heating
- Compliant board locating posts
- Compatible with convection / IR process
- Card slot heights 5.84mm to 16.68mm
- Insert molded using liquid crystal polymer for stability in hybrid board applications involving surface mount components
- Offer PCB design flexibility
- Designed to mate with .062″ thick daughter card
- Meets PCIe 2.1, 100 ohm, specifications
- RoHS Compliant product available
SPECIFICATIONS
Electrical
- Contact Resistance: 40 milliohm nominal
- Dielectric Withstanding Voltage: 300 VDC
- Current Rating: 1.1 AMP per contact
- Insulation Resistance: 100 Megaohms (minimum)
Mechanical
- Standard Contact Finish: contact and solder tail finish surface consists of 5μ Au over 50μ min Ni
- Custom Contact Finish: Specific gold plating thickness available upon request
- Insertion Force: 150 grams (max)/opposing contact pair
- Optional, lower cost, contact finish: 5μ min Au on contact interface end and 100μ min whisker mitigating matte Sn on contact tails, over 50μ min Ni over entire contact
- Contact Material: Copper alloy
- Number of Contacts: X1=36, X4=64, X8=98, X16=164, X24=230
- Normal Force: 5 grams (min)/contact
- Dielectric Material: Glass filled liquid crystal polymer (black)
Environmental
- Material: U.L. rated 94 V-O
- Temperature Rating: -40°C to +105°C
Supporting Documents
This PCI Express 100 Ohm Right Angle Through-Hole Mount Connector solves space problem in applications where a card edge connector is needed and low clearance above PCB prohibits use of vertical configurations. See also:
PCIe 85 Ohm Right Angle Connectors
PCIe 100 Ohm Right Angle Connectors
Product Details
36 POSITION PART NUMBERS
64 POSITION PART NUMBERS
98 POSITION PART NUMBERS
164 POSITION PART NUMBERS
| PN | Name | Description | Stack Height | Plating |
|---|---|---|---|---|
| 983171-036-2MMF | RA | 983171-036-2MMF | 36 Pos. PCIe RA 100 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
5µ Au over 50µ Min Ni |
| 983171-036-2QMF | RA | 983171-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983172-036-2MMF | RA | 983172-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983172-036-2QMF | RA | 983172-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983173-036-2MMF | RA | 983173-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983173-036-2QMF | RA | 983173-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 98317G-036-2MMF | RA | 98317G-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317G-036-2QMF | RA | 98317G-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317H-036-2MMF | RA | 98317H-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317H-036-2MMF | RA | 98317H-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 5� Au over 50µ Min Ni |
| 98317H-036-2MMF | RA | 98317H-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317H-036-2QMF | RA | 98317H-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317J-036-2MMF | RA | 98317J-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317J-036-2QMF | RA | 98317J-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317A-036-2MMF | RA | 98317A-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317A-036-2QMF | RA | 98317A-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317B-036-2MMF | RA | 98317B-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317B-036-2QMF | RA | 98317B-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317C-036-2MMF | RA | 98317C-036-2MMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317C-036-2QMF | RA | 98317C-036-2QMF | 36 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| PN | Name | Description | Stack Height | Plating |
|---|---|---|---|---|
| 983171-064-2MMF | RA | 983171-064-2MMF | 64 Pos. PCIe RA 100 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
5µ Au over 50µ Min Ni |
| 983171-064-2QMF | RA | 983171-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983172-064-2MMF | RA | 983172-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983172-064-2QMF | RA | 983172-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983173-064-2MMF | RA | 983173-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983173-064-2QMF | RA | 983173-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 98317G-064-2MMF | RA | 98317G-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317G-064-2QMF | RA | 98317G-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317H-064-2MMF | RA | 98317H-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317H-064-2QMF | RA | 98317H-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317J-064-2MMF | RA | 98317J-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317J-064-2QMF | RA | 98317J-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317A-064-2MMF | RA | 98317A-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317A-064-2QMF | RA | 98317A-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317B-064-2MMF | RA | 98317B-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317B-064-2QMF | RA | 98317B-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317C-064-2MMF | RA | 98317C-064-2MMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317C-064-2QMF | RA | 98317C-064-2QMF | 64 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| PN | Name | Description | Stack Height | Plating |
|---|---|---|---|---|
| 983171-098-2QMF | RA | 983171-098-2QMF | 98 Pos. PCIe RA 100 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
30µ Au over 50µ Min Ni |
| 983172-098-2MMF | RA | 983172-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983172-098-2QMF | RA | 983172-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983173-098-2MMF | RA | 983173-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983173-098-2QMF | RA | 983173-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 98317G-098-2MMF | RA | 98317G-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317G-098-2QMF | RA | 98317G-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317H-098-2MMF | RA | 98317H-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317H-098-2QMF | RA | 98317H-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317J-098-2MMF | RA | 98317J-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317J-098-2QMF | RA | 98317J-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317A-098-2MMF | RA | 98317A-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317A-098-2QMF | RA | 98317A-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317B-098-2MMF | RA | 98317B-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317A-098-2MMF | RA | 98317A-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317B-098-2MMF | RA | 98317B-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317B-098-2QMF | RA | 98317B-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317C-098-2MMF | RA | 98317C-098-2MMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317C-098-2QMF | RA | 98317C-098-2QMF | 98 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| PN | Name | Description | Stack Height | Plating |
|---|---|---|---|---|
| 983171-164-2MMF | RA | 983171-164-2MMF | 164 Pos. PCIe RA 100 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
5µ Au over 50µ Min Ni |
| 983171-164-2QMF | RA | 983171-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983172-164-2MMF | RA | 983172-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983172-164-2QMF | RA | 983172-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983173-164-2MMF | RA | 983173-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983173-164-2QMF | RA | 983173-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 98317G-164-2MMF | RA | 98317G-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317G-164-2QMF | RA | 98317G-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317G-164-2QMF | RA | 98317G-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317H-164-2MMF | RA | 98317H-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317H-164-2QMF | RA | 98317H-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317J-164-2MMF | RA | 98317J-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98317J-164-2QMF | RA | 98317J-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98317A-164-2MMF | RA | 98317A-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317A-164-2QMF | RA | 98317A-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 2.54mm (.100") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317B-164-2MMF | RA | 98317B-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317B-164-2QMF | RA | 98317B-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.17mm (.125") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
| 98317C-164-2MMF | RA | 98317C-164-2MMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 5µ Au over 50µ Min Ni |
| 98317C-164-2QMF | RA | 98317C-164-2QMF | 164 Pos. PCle RA 100 Ohm Solder Tail Len 3.56mm (.140") | 16.69mm (.657") | 30µ Au over 50µ Min Ni |
Supporting Documents

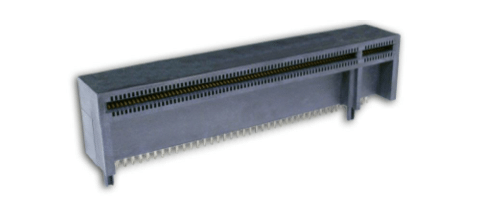

This PCI Express 85 Ohm Right Angle Through-Hole Mount Connector solves space problem in applications where a card edge connector is needed and low clearance above PCB prohibits use of vertical configurations.See also:
PCIe 100 Ohm Right Angle Connectors
PCIe 85 Ohm Right Angle Connectors
Product Details
FEATURES & BENEFITS
- Parallel Daughter card mating for low profile applications
- Plastic cover protects connectors from dust and debris, and supports connector for hybrid soldering applications requiring convection/IR heating
- Compliant board locating posts
- Card slot heights 5.84mm to 11.17mm
- Insert molded using liquid crystal polymer for stability in hybrid board applications involving surface mount components requiring convection or IR heating
- Offers PCB design flexibility
- Designed to mate with .062” thick daughter card
- Meets PCIe 3.0 Electrical data requirements for 8.0 Gb/s
SPECIFICATIONS
Electrical
- Contact resistance: 40 milliohms nominal
- Dielectric withstanding voltage: 300VDC
- Current rating: 1.1 AMP per contact
- Insulation resistance: 100 Mohms (minimum)
Mechanical
- Contact material: Copper alloy
- Number of contacts: X1=36, X4=64, X8=98, X16=164, X24=230
- Standard contact finish: contact and solder tail finish surface consists of 5μ Au over 50μ min Ni
- Custom contact finish: specific gold plating thickness available upon request
- Insertion force:150 grams maximum per opposing contact pair
- Normal force: 5 grams minimum per contact
- Dielectric material: glass filled Liquid Crystal Polymer (LCP)
Environmental
- Material: UL 94 V-0 rated
- Temperature Range: -40C to +105C
36 POSITION PART NUMBERS
64 POSITION PART NUMBERS
98 POSITION PART NUMBERS
164 POSITION PART NUMBERS
| PN | Name | Description | Stack Height | Plating |
|---|---|---|---|---|
| 983571-036-2MMF | RA | 983571-036-2MMF | 36 Pos. PCIe RA 85 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
5µ Au over 50µ Min Ni |
| 983571-036-2QMF | RA | 983571-036-2QMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983572-036-2MMF | RA | 983572-036-2MMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983572-036-2QMF | RA | 983572-036-2QMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983573-036-2MMF | RA | 983573-036-2MMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983573-036-2QMF | RA | 983573-036-2QMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 98357G-036-2MMF | RA | 98357G-036-2MMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98357G-036-2QMF | RA | 98357G-036-2QMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 983573-036-2QMF | RA | 983573-036-2QMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 98357H-036-2MMF | RA | 98357H-036-2MMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98357H-036-2QMF | RA | 98357H-036-2QMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98357J-036-2MMF | RA | 98357J-036-2MMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98357J-036-2QMF | RA | 98357J-036-2QMF | 36 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| PN | Name | Description | Stack Height |
|---|---|---|---|
| 983571-064-2MMF | RA | 983571-064-2MMF | 64 Pos. PCIe RA 85 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
| 983571-064-2QMF | RA | 983571-064-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 5.8mm (.230") |
| 983572-064-2MMF | RA | 983572-064-2MMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") |
| 983572-064-2QMF | RA | 983572-064-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") |
| 983573-064-2MMF | RA | 983573-064-2MMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") |
| 983573-064-2QMF | RA | 983573-064-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") |
| 98357G-064-2MMF | RA | 98357G-064-2MMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") |
| 98357G-064-2QMF | RA | 98357G-064-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") |
| 98357H-064-2MMF | RA | 98357H-064-2MMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") |
| 98357H-064-2QMF | RA | 98357H-064-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") |
| 98357J-064-2MMF | RA | 98357J-064-2MMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") |
| 98357J-064-2QMF | RA | 98357J-064-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") |
| PN | Name | Description | Stack Height | Plating |
|---|---|---|---|---|
| 983571-098-2MMF | RA | 983571-098-2MMF | 98 Pos. PCIe RA 85 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
5µ Au over 50µ Min Ni |
| 983571-098-2QMF | RA | 983571-098-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983572-098-2MMF | RA | 983572-098-2MMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983572-098-2QMF | RA | 983572-098-2QMF | 98 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 983573-098-2MMF | RA | 983573-098-2MMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 5µ Au over 50µ Min Ni |
| 983573-098-2QMF | RA | 983573-098-2QMF | 64 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") | 30µ Au over 50µ Min Ni |
| 98357G-098-2MMF | RA | 98357G-098-2MMF | 98 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98357G-098-2QMF | RA | 98357G-098-2QMF | 98 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98357H-098-2MMF | RA | 98357H-098-2MMF | 98 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98357H-098-2QMF | RA | 98357H-098-2QMF | 98 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| 98357J-098-2MMF | RA | 98357J-098-2MMF | 98 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 5µ Au over 50µ Min Ni |
| 98357J-098-2QMF | RA | 98357J-098-2QMF | 98 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") | 30µ Au over 50µ Min Ni |
| PN | Name | Description | Stack Height |
|---|---|---|---|
| 983571-164-2MMF | RA | 983571-164-2MMF | 164 Pos. PCIe RA 85 Ohm Solder Tail Len 2.54mm (.100") |
5.8mm (.230") |
| 983571-164-2QMF | RA | 983571-164-2QMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 5.8mm (.230") |
| 983572-164-2MMF | RA | 983572-164-2MMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") |
| 983572-164-2QMF | RA | 983572-164-2QMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 5.8mm (.230") |
| 983573-164-2MMF | RA | 983573-164-2MMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") |
| 983573-164-2QMF | RA | 983573-164-2QMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 5.8mm (.230") |
| 98357G-164-2MMF | RA | 98357G-164-2MMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") |
| 98357G-164-2QMF | RA | 98357G-164-2QMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 2.54mm (.100") | 11.76mm (.440") |
| 98357H-164-2MMF | RA | 98357H-164-2MMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") |
| 98357H-164-2QMF | RA | 98357H-164-2QMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.17mm (.125") | 11.76mm (.440") |
| 98357J-164-2MMF | RA | 98357J-164-2MMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") |
| 98357J-164-2QMF | RA | 98357J-164-2QMF | 164 Pos. PCle RA 85 Ohm Solder Tail Len 3.56mm (.140") | 11.76mm (.440") |
Supporting Documents
RELATED PRODUCTS
NEED HELP?
ASK AN EXPERT
If you would like to talk to someone about a product or technical advice, contact one of experts for assistance.
Contact Us
Thank you for contacting us.
We will get back to you as soon as possible.
We will get back to you as soon as possible.
Oops, there was an error sending your message.
Please try again later.
Please try again later.
About Meritec
Meritec is the electronic connector and cable assembly division of parent company, Ohio Associated Enterprises, LLC (“Associated Enterprises”). Founded in 1967, The Company has firmly established itself in the global Electronic Interconnection Industry.
We Seek & Solve Critical Connectivity Challenges.
Contact
Phone: 1-888-MERITEC
Email: info@meritec.com
Address: 1382 W Jackson St, Painesville, OH, United States, Ohio
Hours: Mon-Fri 8:00am-5:00pm
About Meritec
Meritec is a full-scale designer and manufacturer of high-performance electronic connectors and cable assemblies. With nearly six decades of innovation, Meritec serves its global customers with solutions specializing in ruggedized, high-density Embedded Computing products for Mil/Aero, Telecom, and Datacom, and high-speed interconnects for Medical and Automated Test Equipment (ATE) applications.
We Seek & Solve Critical Connectivity Challenges.
Contact
1382 W Jackson St.
Painesville, Ohio 44077
United States
Mon-Fri 8:00am-5:00pm
© 2025
All Rights Reserved | Meritec
We use cookies to ensure that we give you the best experience on our website. To learn more, go to the Privacy Page.
×
