Display Power Cables

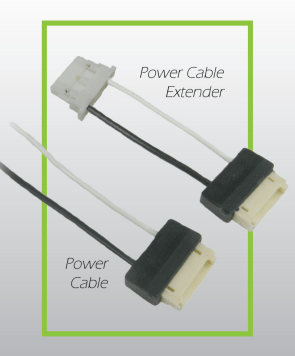

This power cable assembly is ideally suited for board-to-LCD interconnects. Allows for convenient extension where existing LCD cables limit length. Overmolded strain relief is designed for critical applications where reliable termination is a must. This assembly allows for customer specified terminations on the opposite end or may be terminated to the JST BH receptacle as an extender cable.
Display Power Cables assemblies
Product Details
FEATURES & BENEFITS
- Mates with JST BH recepticle, P/N SMO2 (8.0) B-BHS-1-TB
- Compatible with most liquid crystal displays
- Internal power cable assembly
- Extends LCD power cord
- Consult factory for availability of optional circuit sizes
- Termination on opposite end can be customer specific
- Custom cable length avaiable
- Overmold strain relief
- Reliable solder termination
- Low profile design, fits in tight locations
- Suitable in notebook hinge areas, point of sale machines & projector systems
SPECIFICATIONS
Electrical
- Contact Reistance: 20 milliohm (max)
- Dielectric Withstanding Voltage: 1000V RMS (min) at 60 Hz
- Current Rating: 1.0 AMP AC, DC
- Insulation Resistance: 500 megaohms (min) at 500 V DC
- Voltage Rating: 600V AC, DC
Environmental
- Overmold Material: LCP (black), U.L. 94V-0
- Temperature Rating: -25°C to +85°C
- Connector Material: Polyamide resin (natural), U.L. 94V-0
- Cable Material: MV-MIL-W-76-PVC, MW-C22
Contacts
- Material: Copper alloy
- Finish: Tin plating
- Insertion Force: 601 grams (nominal)
- Withdrawal Force: 704 grams (nominal)
Cable
- Insulator: Extruded PVC
- Conductor: Copper
- Plating: Tin
- Applicable Wire: Awg #22 – Awg #28, solid or stranded
