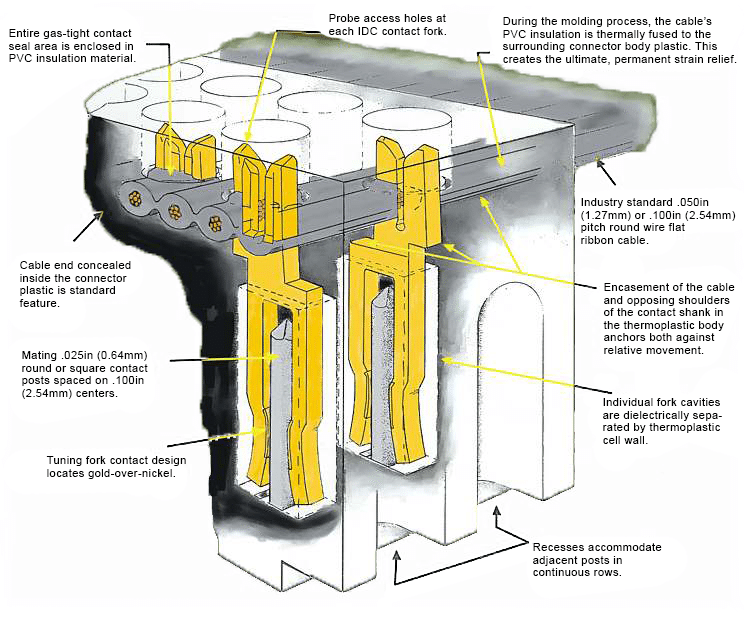

Molded-On is the term we use to describe the integration of cable and contacts into one-piece, inseparable assemblies by means of injection molding. The process itself is unique in the industry, and so are the resulting functional and economic advantages in the interconnection systems.
The most obvious advantage of the Black Silver® Molded-On assemblies is that they are one piece, and therefore inseparable, as opposed to Std IDC “sandwich” style. There are no individual components to come apart or lose or stock to assemble or test or scrap. They are factory tested and ready to install when shipped.
Black Silver® Molded-On Ribbon Cable Assemblies
Product Details
FEATURES & BENEFITS
- Improved insulation resistance
- Vibration Resistance
- Higher Breakdown Voltage
- Eliminates any need for additional strain relief features
- Available in 10, 14, 16, 20, 26, 34, 40, AND 60 position
- Can be used with any industry standard .050in. (1.27mm) ribbon cable
- Numerous configurations are available as single-ended, double-ended, or daisy chain assemblies, using Single Row Sockets, Dual Row Sockets, Single Row Boards and Dual Row Boards
- All contacts are tempered nickel-silver alloys, which provide:
– High strength
– Spring properties with superior resilience
– Fatigue strength in excess of 25K PSI for 1,000,000 cycles
– Superior corrosion resistance
– Easy solderability
PART NUMBERS
| PN | Name | Description | Polarized | Plating |
|---|---|---|---|---|
| MT08930011 | Black | MT08930011 | 8 Pos.Single Row Board to 8 Pos. Dual Row Board 2.375_ OAL PVC 28awg | No | 10 mil gold |
| MT00030006 | Black | MT00030006 | Sealed 10 Pos.Dual Row Socket to 10 Pos.Dual Row Socket 12" OAL PVC 28awg | Yes | 10 mil gold |
| MT96060044 | Black | MT96060044 | 12 Pos.Single Row Socket to 12 Pos.Single Row Socket 1.54" OAL PVC 28awg | No | Tin |
| MT95090016 | Black | MT95090016 | 14 Pos.Dual Row Socket to 14 Pos.Dual Row Board 4.62" OAL PVC 28awg | No | 30 mil gold |
| MT96030061 | Black | MT96030061 | 16 Pos.Dual Row Socket to 16 Pos.Dual Row Board 1.47" OAL Tempflex Red 28awg | No | Unplated |
| MT99080003 | Black | MT99080003 | 16 Pos.Dual Row Socket to 16 Pos.Dual Row Socket 14" OAL PVC 28awg | Yes | Unplated |
| MT06920026 | Black | MT06920026 | 20 Pos.Dual Row Socket to 20 Pos.Dual Row Board 2.62" OAL PVC 28awg | No | Tin |
| MT03930053 | Black | MT03930053 | 26 Pos.Dual Row Socket to 26 Pos.Dual Row Board 4.62" OAL PVC 28awg | No | Tin |
| MT05930018 | Black | MT05930018 | 40 Pos.Dual Row Socket to 40 Pos.Dual Row Board 4.97" OAL Tempflex Green 26awg | No | Tin |
| MT04060030 | Black | MT04060030 | 50 Pos.Dual Row Socket to 50 Pos.Dual Row Board 10" OAL PVC 28awg | No | Tin |
