SCSI Adapters
Meritec SCSI Adapters have proven to be the most reliable connection you will ever come across when interfacing between SCSI-1 and SCSI-3 devices. In addition to the standard low profile SCSI Adapters, Meritec designs and manufactures a wide range of custom adapters that are unique to the customer’s specific application. Whether it’s custom or standard, we can deliver the adapter you need. See also: SCSI Female to Female Interface Adapter and SCSI Male to Male Interface Adapter.
meritec SCSI Adapters
Product Details
FEATURES & BENEFITS
- Allows reliable interfacing of 8 bit to 16 bit & 16 bit to 8 bit
- Eliminates the need for multiple cable assembly configurations
- Short overall length between mating faces allows dense packaging
- High withdrawal force contacts
- Low inductance, short electrical path
- Ultra SCSI/fast-20 compliant
- Meets ANSI Specifications X3-131-1986
- Standard product pinouts meet SCSI Specifications
- The 68 position is available with & without latch posts
- Customer specific pinout, filtering & termination available
- RoHS Compliant product available
SPECIFICATIONS
Electrical
- Contact Resistance: 15 milliohm (max)
- Dielectric Withstanding Voltage: 500 VAC (RMS)
- Current Rating: 1.0 AMP (continuous)
- Insulation Resistance: >1 x 1012 ohms at 300 VDC
Mechanical
- Dielectric Material –
Connector Body: Liquid crystal polymer
Backshell: Glass filled polyester
- Insertion / Withdrawal Force: Dependent on mating connector used
- Contact Material: Copper alloy
- Contact Finish: Selectively plated contact surface consists of 30 micro” gold (min) over 50 micro” nickel (min)
Environmental
- Material: U.L. rated 94 V-O
- Temperature Rating: -40°C to +105°C
MALE TO MALE SCSI ADAPTER PART NUMBERS
FEMALE TO FEMALE SCSI ADAPTER PART NUMBERS
| PN | Name | Description | Mates |
|---|---|---|---|
| 980211-1M1-3M0R | SCSI | 980211-1M1-3M0R | 50 M to 68 M 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; With latch posts | SCSI-1 and SCSI-3 |
| PN | Name | Description | Mates |
|---|---|---|---|
| 980211-1F1-3F0R | SCSI | 980211-1F1-3F0R | 50 F to 68 F 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; Without latch posts | SCSI-1 and SCSI-3 |
| 980211-1F1-9802 | SCSI | 980211-1F1-9802 | 50 F to 68 F 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; With latch posts | SCSI-1 and SCSI-3 |
| 980211-1F1X3F3R | SCSI | 980211-1F1X3F3R | 50 F to 68 F: With Term Power 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; With latch posts | SCSI-1 and SCSI-3 |
| 980211-1F1X3F0R | SCSI | 980211-1F1X3F0R | 50 F to 68 F: With Term Power 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; Without latch posts | SCSI-1 and SCSI-3 |
Supporting Documents
Meritec’s Female to Female adapter allows reliable interfacing between SCSI-1 and SCSI-3. The adapter mates with a 50 position .100 x .100 grid SCSI-1 low profile shrouded headers and a 68 position .050 x .100 grid SCSI-3 plugs. These adapters are available with customer specific pinout, filtering and termination. The 68 position is offered with and without latch posts.
See also:
SCSI Male to Male Interface Adapter
SCSI Female to Female Adapter
Product Details
FEATURES & BENEFITS
- Allows reliable interfacing of 8 bit to 16 bit and 16 bit to 8 bit devices
- Eliminates the need for multiple cable assembly configurations
- Short overall length between mating faces allows dense packaging
- High withdrawal force contacts
- Low inductance, short electrical path
- Ultra SCSI/fast-20 compliant
- Meets ANSI Specifications X3-131-1986
- Standard product pinouts meet SCSI specifications
- The 68 position is available with and without latch posts
- Available in customer specific pinout, filtering and termination
- RoHS Compliant products available
SPECIFICATIONS
Electrical
- Contact Resistance:15 milliohm (maximum)
- Dielectric withstanding voltage: 500 VAC (RMS)
- Current rating: 1.0 amp (continuous)
- Insulation resistance: >1 x 1012 ohms @ 300 VDC
Mechanical
- Contact material: copper alloy
- Contact finish: selectively plated contact surface consists of 30 micro-inches gold (minimum) over 50 micro-inches nickel (minimum)
- nsertion force: 50 pos: 150 grams/contact nominal
68 pos: 75 grams/contact nominal
- Withdrawal force: 50 pos: 95 grams/contact nominal
68 pos: 50 grams/contact nominal
- Dielectric material: Connector body: liquid crystal polymer Backshell: glass filled polyester
Environmental
- Material: U.L. rated 94V-0
- Temperature rating: -40°C to +105°C
FEMALE TO FEMALE SCSI ADAPTER PART NUMBERS
| PN | Name | Description | Mates |
|---|---|---|---|
| 980211-1F1-3F0R | SCSI | 980211-1F1-3F0R | 50 F to 68 F 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; Without latch posts | SCSI-1 and SCSI-3 |
| 980211-1F1-9802 | SCSI | 980211-1F1-9802 | 50 F to 68 F 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; With latch posts | SCSI-1 and SCSI-3 |
| 980211-1F1X3F3R | SCSI | 980211-1F1X3F3R | 50 F to 68 F: With Term Power 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; With latch posts | SCSI-1 and SCSI-3 |
| 980211-1F1X3F0R | SCSI | 980211-1F1X3F0R | 50 F to 68 F: With Term Power 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; Without latch posts | SCSI-1 and SCSI-3 |
Supporting Documents

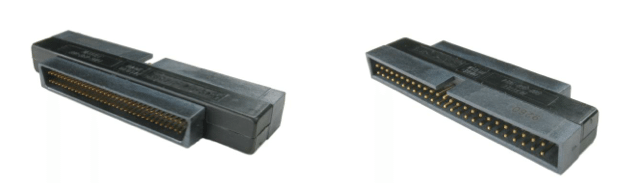

Meritec’s Male to Male adapter allows reliable interfacing between SCSI-1 and SCSI-3. The adapter mates with 50 position .100 x .100 SCSI-1 receptacles and 68 position .050 x .100 grid SCSI-3 receptacles and is available with customer specific pinout, filtering and termination. Shown above is a 50 Position Male to 68 Position Male (8 Bit to 16 Bit/16 Bit to 8 Bit). See also:
SCSI Female to Female Interface Adapter
SCSI Male to Male Interface Adapter
Product Details
FEATURES & BENEFITS
- Allows reliable interfacing of 8 bit to 16 bit and 16 bit to 8 bit devices
- Eliminates the need for multiple cable assembly configurations
- Short overall length between mating faces allows dense packaging
- High withdrawal force contacts
- Low inductance, short electrical path
- Ultra SCSI/fast-20 compliant
- Meets ANSI Specifications X3-131-1986
- Standard product pinouts meet SCSI specifications
- Available in customer specific pinout, filtering and termination
- RoHS Compliant product available
SPECIFICATIONS
Electrical
- Contact Resistance:15 milliohm (maximum)
- Dielectric withstanding voltage: 500 VAC (RMS)
- Current rating: 1.0 amp (continuous)
- Insulation resistance: >1 x 1012 ohms @ 300 VDC
Mechanical
- Contact material: copper alloy
- Contact finish: selectively plated contact surface consists of 30 micro-inches gold (minimum) over 50 micro-inches nickel (minimum)
- Insertion / withdrawal force: dependent on mating connector used
- Dielectric material:
Connector body: liquid crystal polymer
Backshell: glass filled polyester
Environmental
- Material: U.L. rated 94V-0
- Temperature rating: -40°C to +105°C
MALE TO MALE SCSI ADAPTER PART NUMBERS
| PN | Name | Description | Mates |
|---|---|---|---|
| 980211-1M1-3M0R | SCSI | 980211-1M1-3M0R | 50 M to 68 M 8 Bit to 16 Bit/16 bit to 8 bit Dual Row; With latch posts | SCSI-1 and SCSI-3 |
Supporting Documents
