2mm HPM System

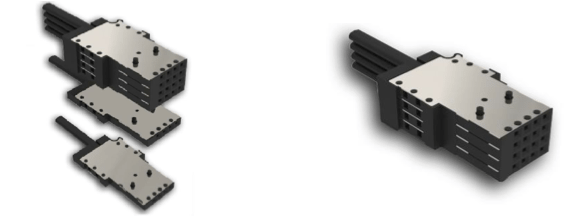

Meritec’s HPM (High Performance Metric) 2mm cable assemblies take you to the next performance level without taking you to the cleaners. The innovative design features a strain relief without overmolding, a slightly inductive contact and the most reliable form of wire termination. In addition, Meritec offers shielded backshells for EMI applications and our inter-modular shields feature programmable ground positions. Our design incorporates a wide range of performance cable and customizable features, which allows you to specify an interconnect system that will provide the superior performance you require for your system.
2mm HPM
Product Details
With today’s systems requiring more speed and increased bandwidth, we redesigned our strain relief system to eliminate overmolding of the cable. Overmolding of the cable can cause impedance spikes and unwanted reflections that can impair the system’s performance. Our welded terminations form a molecular bond between the wire and our contact. There is also no added capacitance from the use of solder, and our weld monitors provide manufacturing SPC. Meritec’s creative design minimizes the strip length of the wire at the termination point to maintain the cleanest impedance environment throughout. When you add it all up, the Meritec HPM-5 assembly provides the best and most consistent combination of low loss, cross-talk, skew, capacitance and controlled impedance.
-
CUSTOM BUILD PRODUCTS
Meritec offers a wide variety of custom build products for specific application needs. These 2mm products are an example of the custom build products produced by Meritec. Please contact an Inside Sales Coordinator for more information on the custom build 2mm cable assembly products at 1-800-860-9014 or info@meritec.com.
-
PART NUMBERS
| PN | Name | Description |
|---|---|---|
| 980129-024R1 | HPM | 980129-024R1 | 1x5+2 FEP 50 OHM coax 24"ROHS |
| 980129-048R1 | HPM | 980129-048R1 | 1x5+2 FEP 50 OHM coax 48" ROHS |
| 980132-040R1 | HPM | 980132-040R1 | 2 HPM 1x5+2 Wafers to Cat 5e to RJ45-RoHS compliant |
| 980290-024 | HPM | 980290-024 | 1x5+2 Hookup Cable |
| 980290-048 | HPM | 980290-048 | 1x5+2 Hookup Cable |
| 980290-072 | HPM | 980290-072 | 1x5+2 Hookup Cable |
| 980937-4 | HPM | 980937-4 | 1x5+2 Blank Wafer |
| 980303-25-10 | HPM | 980303-25-10 | 25 Position Locking Rails |
| 980295-04R1 | HPM | 980295-04R1 | 1x5+2 Key Plug |
| 980319-048R1 | HPM | 980319-048R1 | 1x5+2 Parallel Pair-RoHS compliant |
| 980319-024R1 | HPM | 980319-024R1 | 1x5+2 Parallel Pair-RoHS compliant |
| 980319-012R1 | HPM | 980319-012R1 | 1x5+2 Parallel Pair-RoHS compliant |
Supporting Documents
Product Details
-
FEATURES & BENEFITS
- Framatome Millipac 1 Berg Metral Compatible
- Cannon Tempus Ceco FX-1 Compatible
- Amp Z-Pack FB Compatible
- Other IEC 1076-4-102 Compatible
- Compliant Backplane Connectors
- 2mm x 2mm Spacing
- 4 Contacts per row
- Polarized
- Shielded
- Stackable Wafers
- Second end Terminations include BNCs, SMAs, D-Subs, 38999, Circulars, RJ45, Sata/E-Sata, USB & more.
- Individual Wafers can be Stacked up to 25
-
SPECIFICATIONS
Electrical:
- Voltage rating: 250 VAC
- Current rating: 1.0 AMP per contact @ 70o
Ambient and 10oC Rise Maximum
- Insulation resistance 100 Megohms min.
- Dielectric withstanding voltage: 750 VAC
Mechanical:
- Mating pin length: 4 – 9.5mm
- Contacts: Copper Alloy 7025
- Plating: Minimum .75μm Au over 1.9μm Ni in contact area
- Shield: Alloy 770 Nickel Silver
- Single wafer/header retention: 136 grams/contact (nominal)
- Single wafer/header insertion: 186 grams/contact (nominal)
- Six wafer/header retention: 790 grams/contact (nominal)
- Six wafer/header insertion: 1140 grams/contact (nominal)
- Normal force: 47grams
- Connector body: Glass filled Liquid Crystal Polymer
Environmental:
- Material: UL 94 V-O rated
- Temperature Range: -55oC to +105oC
-
CABLE SELECTIONS INCLUDE:
| Style | Description | AWG |
|---|---|---|
| 01 | 100Ω Parallel Pair | 26/28 |
| 02 | 100Ω Parallel Pair | 28/30 |
| 03 | 75Ω Coax | 30 |
| 04 | 50Ω Coax | 30 |
| 05 | Hook-up Wire | 24 |
| 06 | Hook-up Wire | 26 |
| 07 | Category 5e | N/A |
| 08 | Category 6 | N/A |
| 09 | RG 178 Coax | N/A |
| 10 | Mil Standard / Wide Selection | N/A |
Cable Selections Include:
Supporting Documents
