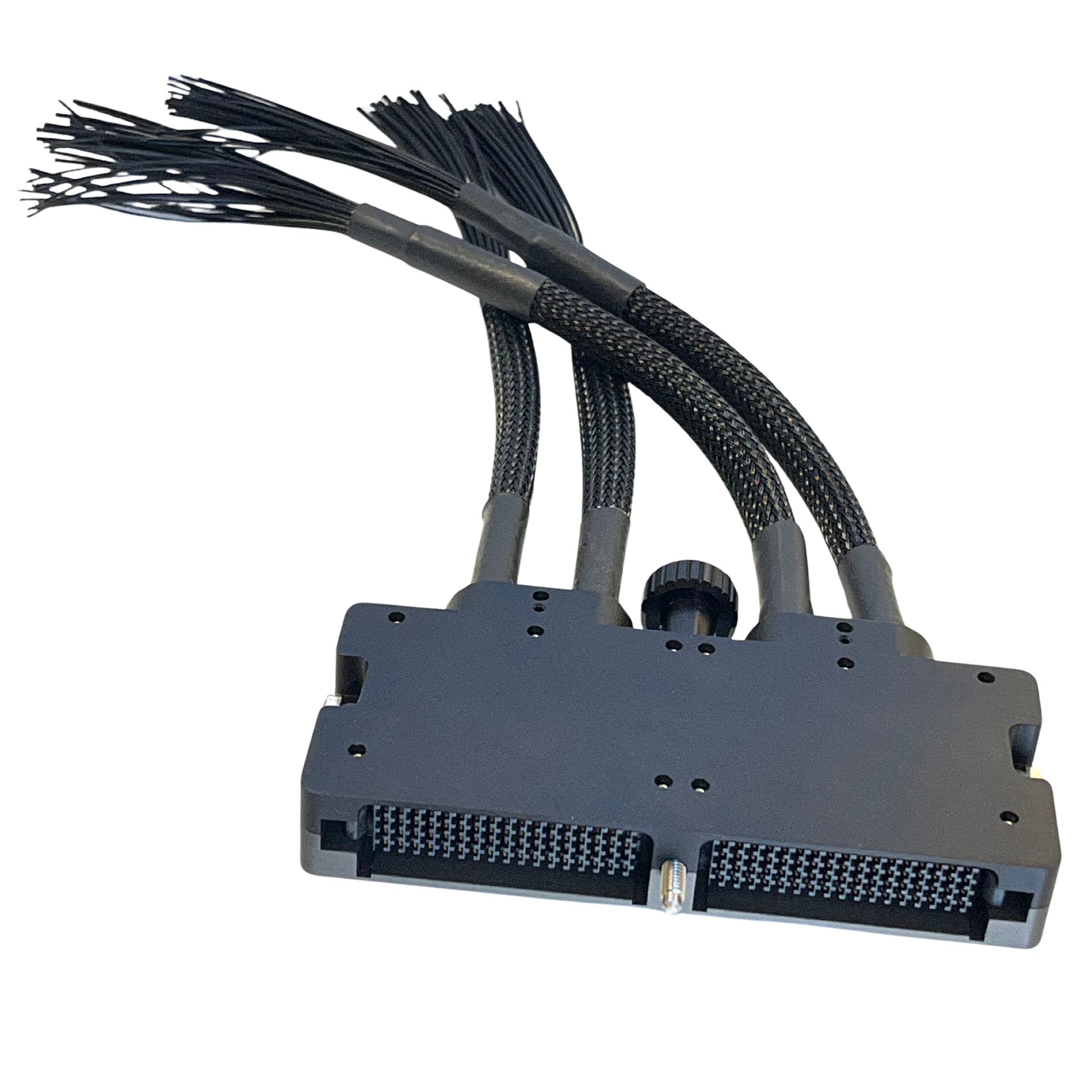

CB140 Compact Brute Connector
Developed for use as a rugged-test floor interconnect, the Compact Brute series connector allows for design flexibility with up to 140 pins on a 4x35 matrix.
The pins can be configured as signals, grounds or power up to 1.7A/pin. For lower performance applications a typical configuration could be 32 signals and 3 grounds on three rows for a total of 96 signals and 9 grounds.The remaining 35 pins could be power supply.
Compact Brute Connector System
Product Details
FEATURES & BENEFITS
- Rugged, hard anodized aluminum shell with PTFE Mil-Spec coating
- Contacts are protected by an LCP grid
- Patented hermaphroditic contact for low insertion force and long life
- Contacts are dual wipe for redundancy and high reliability
- 140 positions available for signal, ground or power
- Up to 1.7A/pin per contact
- PCB mounted connectors rated 630 VDC
- Resilient LCP Quick Latch system for quick attach and removal
- Two stainless steel alignment pins on board-mounted connections
- Secured to PCB with two 4-40 screws

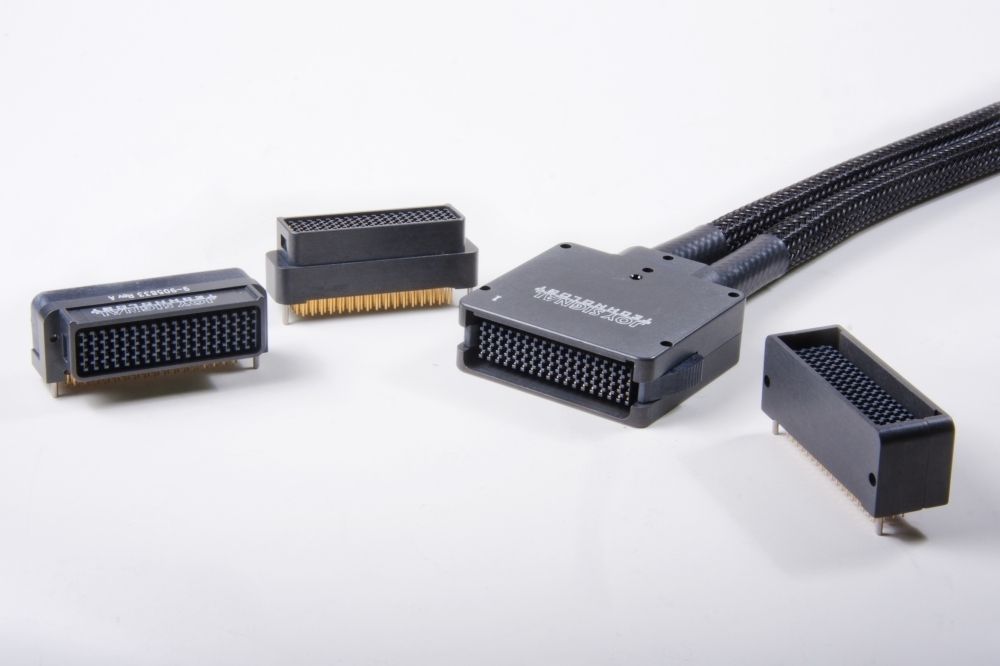

- Available PCB-mounted connectors:
– Vertical Male
– Vertical Female
– Right-Angle Male
– Right-Angle Female
- Female board-mount connectors for board-to-board applications
- Cable-end connector always female
- Vertical Male Board footprint: 2.23" [56.6] x 0.66" [16.8]
SPECIFICATIONS
- Rugged, hard anodized aluminum shell with PTFE Mil-Spec coating
- Contacts are protected by an LCP grid
- Patented hermaphroditic contact for low insertion force and long life
- Contacts are dual wipe for redundancy and high reliability
- 140 positions available for signal, ground or power
- Up to 1.7A/pin per contact
- PCB mounted connectors rated 630VDC
- Resilient LCP Quick Latch system for quick attach and removal
- Two stainless steel alignment pins on board-mounted connections
- Secured to PCB with two 4-40 screws
- Available PCB-mounted connectors:
-Vertical Male
-Vertical Female
-Right-Angle Male
-Right-Angle Female
- Female board-mount connectors for board-to-board applications
- Cable-end connector always female
- Vertical Male Board footprint: 2.23″ [56.6] x 0.66″ [16.8]
Supporting Documents
Developed for use as a rugged-test floor interconnect, the Compact Brute series connector allows for design flexibility with up to 140 pins on a 4×35 matrix. The pins can be configured as signals, grounds or power up to 1.7A. For lower performance applications a typical configuration could be 32 signals and 3 grounds on three rows for a total of 96 signals and 9 grounds. The remaining 35 pins could be power supply.
For a higher performance application each row can be configured in a sig/gnd/sig/gnd repeating pattern with 17 signals and 18 grounds per row or a connector total of 68 single-ended signals. Differential signals running on shielded-twisted pair or shielded-parallel pair are also possible with this connector.
All cable end connectors are female. There are board-mounted headers available in vertical male, right-angle male, vertical female and rightangle female configurations. The female board connectors are for boardto- board connection in conjunction with the male-board connectors.
Compact Brute 140
Product Details
FEATURES & BENEFITS
- Rugged, hard anodized aluminum shell with PTFE Mil-Spec coating
- Contacts are protected by a LCP grid
- Patented hermaphroditic contact for low insertion force and long life
- Contacts are dual wipe for redundancy and high reliability
- 140 positions available for signal, ground or power
- Up to 2A per contact
- Resilient LCP Quick Latch system for quick attach and removal
- Two stainless steel alignment pins on board-mounted connections
- Secured to PCB with two 4-40 screws
- Available PCB-mounted connectors: Vertical Male, Vertical Female, Right-Angle Male, Right-Angle Female
- Female board-mount connectors for board-to-board applications
- Cable-end connector always female
- Vertical Male Board footprint: 2.23″ [56.6] x 0.66″ [16.8]
