CP50
The Meritec CP50 (MXI-2) I/O line of cable assemblies and board mount products has been specifically designed for applications requiring cost-effective solutions to high pin density and demanding electrical specifications with shielding. The heart of this system is a Meritec patented contact, proven by many years of experience. This unique contact system allows for impedance matching, while at the same time, the low insertion force allows as many as 500 contacts per connector with less than 50 pounds of mating force. All connections are welded in an SPC controlled automatic “step and repeat” termination station.

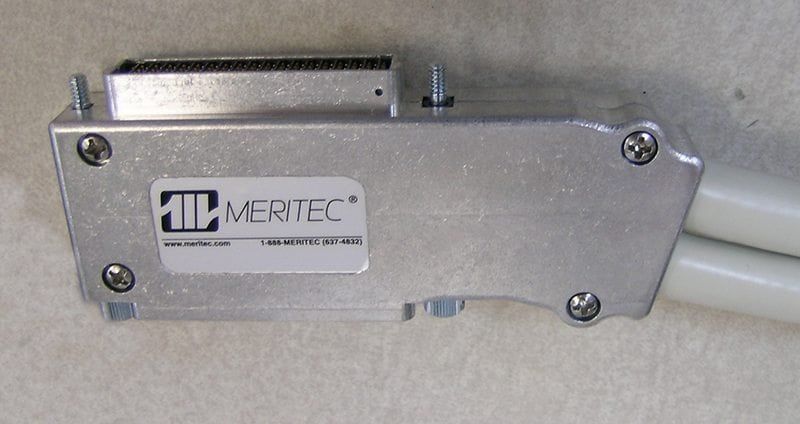

CP50 (MXI-2) I/O & PWB Connector

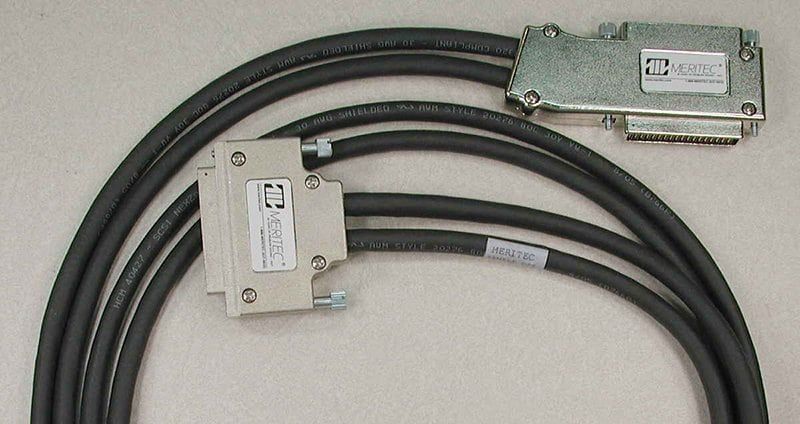

The jacket and shield of the bundled cables are terminated in the backshells in a unique way to provide the highest reliability to both the strain relief and continuity of the shield. Meritec now offers a flexible bundled cable solution using a 30 awg bundled cable that terminates the same as our existing bundled cables. So not only are you getting the highest reliability to both the strain relief and continuity of the shield, but now you’re given more flexibility in routing these assemblies within the cabinet.
Computer programming for special machined configurations provides the only inexpensive quick turnaround method to allow running changes during your development program. For longer production requirements and additional cost savings, die cast backshells are used. Exacting applications that may require special clockline lengths, skew tolerances, or ground bussing configurations can be easily accommodated.
This product is available with standard shielded jacketed cables of twisted pairs, 50 or 75 ohm coax, or 100 ohm parallel pairs in either 28 or 30 AWG primary conductors.
Meritec has developed a variety of right angle and vertical mount PWB connectors designed to mate with the Meritec CP50 (MXI2) cable assemblies. Available in both male and female genders, there are also various tail lengths designed to accommodate customized board thickness. See the attached product drawings and test reports for further information regarding Meritec’s CP50 (MXI2) Connectors. Consult the factory for price and delivery.
Product Details
-
FEATURES & BENEFITS
- Adapter/converters
- Low insertion force
- High reliability
- Low reflection
- Shielded integrity
- Efficient pin utilization
- Quality control, SPC
- High density
- Available system compatibility
- CNC metal backshells
- Patented dual wipe contact
- Welded connections
- 50 or 75 ohm single end matched impedance
- 100 ohm differential matched impedance
- Unique cable strain relief
- Ground bussing options available
- Die cast protection
- .050 contact spacing
-
PART NUMBERS
| PN | Name | Description | Tail Length |
|---|---|---|---|
| 980144-01-R1 | 144 Pos.CP50 | 980144-01-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 6.35mm |
| 980144-02-R1 | 144 Pos.CP50 | 980144-02-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 2.54mm |
| 980144-03-R1 | 144 Pos.CP50 | 980144-03-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 3.17mm |
| 980144-04-R1 | 144 Pos.CP50 | 980144-04-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 3.56mm |
| 980154-144-FR1 | 144 Pos.CP50 | 980154-144-FR1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount |
2.54mm |
| 981128-XXX | 144 Pos.CP50 | 981128-XXX | Cable 1.27mm Straight to Straight Configuration 4- Row Cable Plug | |
| 981129-XXX | 144 Pos.CP50 | 981129-XXX | Cable 1.27mm Straight to RA Feed Thru Configuration 4- Row Cable Plug | |
| 981130-XXX | 144 Pos.CP50 | 981130-XXX | Connector 1.27mm RA to RA Feed ThruConfiguration 4- Row Cable Plug |
Supporting Documents
Product Details
-
FEATURES & BENEFITS
- Designed to mate with Meritec CP-50 Board Mount Connector
- High density configuration minimizes space requirement
- Welded connections
- Factory Assembled
- Metal Backshell
- Patented grounded spring
- Plug orientation
- Quality control processing
- Low cost
- EMI/RFI protection
- Assured connection
- Standard wire gauges
- 50 ohm / 1.3Gb single ended matched impedance
- 100 ohm / 2.5Gb differential matched impedance
- Unique cable strain relief
- Approved & tested contacts
- Fast delivery
- High reliability
- Polarization
- Efficient pin utilization
- Precision, high strength insert molded contacts provide reliability in critical applications
- Ruggedized assembly
Supporting Documents
Product Details
-
FEATURES & BENEFITS
- Designed to mate with Meritec IO cable assemblies
- Mating female & male housings available for co-planar & mezzanine board to board applications
- High density configuration minimizes board space requirement
- Through-hole configuration
- Various tail lengths available to accommodate custom board thickness
- Right angle & vertical mount configurations
- Precision, high strength insert molded contacts provide reliability in critical applications
- Available in 200 & 240 positions
- RoHS Compliant product available
-
SPECIFICATIONS
Electrical
- Current rating: 1 amp/contact
- Contact resistance: 10 Mohms (nom)
- Dielectric withstanding voltage: 300 VDC
- Insulation resistance: 100 Mohms(min)
Mechanical
- Contact material: Copper Alloy
- Metal housings
- Durability: 1000 cycles
- Insertion force: 42 grams/contact
- Withdrawal force: 22 grams/contact
- Standard contact finish:
- 30 micro-inches Au over 50 micro- inches Ni on mating area. 5 micro- inches Au over 50 micro-inches Ni on the Solder tail end
Environmental
- Resin material: LCP U.L. 94V-O rated
- Operating temperature: -55°C to 105°C
-
144 POSITION CP50 BOARD MOUNT CONNECTOR PART NUMBERS
| PN | Name | Description | Tail Length |
|---|---|---|---|
| 980144-01-R1 | 144 Pos.CP50 | 980144-01-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 6.35mm |
| 980144-02-R1 | 144 Pos.CP50 | 980144-02-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 2.54mm |
| 980144-03-R1 | 144 Pos.CP50 | 980144-03-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 3.17mm |
| 980144-04-R1 | 144 Pos.CP50 | 980144-04-R1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount | 3.56mm |
| 980154-144-FR1 | 144 Pos.CP50 | 980154-144-FR1 | Connector 1.27mm Female 4- Row, Thru Hole-Mount |
2.54mm |
| 981128-XXX | 144 Pos.CP50 | 981128-XXX | Cable 1.27mm Straight to Straight Configuration 4- Row Cable Plug | |
| 981129-XXX | 144 Pos.CP50 | 981129-XXX | Cable 1.27mm Straight to RA Feed Thru Configuration 4- Row Cable Plug | |
| 981130-XXX | 144 Pos.CP50 | 981130-XXX | Connector 1.27mm RA to RA Feed ThruConfiguration 4- Row Cable Plug |
Supporting Documents
